PRODUCT OVERVIEW

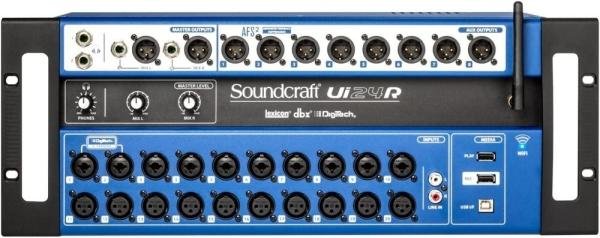

The Soundcraft Ui24R is a complete, rack-mountable, digital mixing and multi-track recording system that delivers flexible I/O, pristine sound quality, intuitive wireless control, and roadworthy reliability?all in a streamlined design. The system can double as a stagebox and can be controlled by up to 10 devices via Ethernet or built-in dual-band Wi-Fi, making it possible to control mixing and multi-track recording wirelessly from anywhere in the venue. With renowned HARMAN signal processing, Studer-designed preamps and much more?from the studio to the stage, Soundcraft Ui24R is the ultimate system for artists, venues and engineers who need to save space and deliver superior sound.?
Ui24R brings together industry-leading HARMAN technologies to deliver unprecedented power and mission-critical stability. Renowned Studer preamps deliver rich sound for live performance and multi-track recording, while iconic Lexicon reverbs, choruses, delays, and dbx compression offer polished results for vocals, acoustic guitar and more. dbx AFS2 automatic feedback suppression is available on all monitor outputs, providing an excellent live experience. Plus, DigiTech guitar amp modeling brings a host of effects to any performance, particularly when low stage volume is desired.
More Ways to Connect

When you need a mixer with comprehensive connections and a compact footprint, Ui24R provides the perfect, streamlined solution. The Ui24R allows you to mix from multiple sources including 10 combo 1/4″-TRS/XLR, 10 XLR, 2 line level inputs, and 2 channels of digital USB playback for a total of 24 channels. With its flexible and high-quality I/O, Ui24R gives venues, bands and engineers room to grow, with expanded creative options.
More Ways to Control

Control Ui24R from the device of your choice (tablet, phone, PC, Mac) via iOS, Android, Windows, Mac OS and Linux browsers, without installing apps. Onboard dual-band WiFi ensures you (and up to 9 members of the band) can always stay in control without relying on an independent router or the venue?s WiFi. Musicians can adjust their individual mix on stage while the FOH engineer optimizes the audience experience.?
Multi-track Recording and Playback

Ui24R is more than just a complete mixing system?it?s also a top-notch recording tool. Enjoy peace of mind with dual-path, multi-track recording of all 22 inputs and your stereo mix, directly to a USB storage drive AND a connected computer. The multi-channel USB audio interface also makes it easy to integrate the Ui24R into your recording studio for production work with your favorite DAW.
More Freedom

Traditional mixers offer lots of functionality, but can only be controlled from the mix console position. The Ui24R surfaceless mixer combines the power and versatility of a large-format console with a compact design and complete Wi-Fi control. With Ui24R, you can finally have the features you need, plus the freedom to control your mixer from anywhere in the venue.
Features

Parallel multitrack recording to USB drive & DAW
20 Mic / Line inputs: 10x XLR, 10x 6.3 mm jack combo
2 RCA line inputs
2-Channel USB media player (MP3, WAV, AIFF playback)
22-Channel USB direct-to-memory recording
32-Channel recording interface (I/O via USB-B port)
Internal sample rate: 48 kHz
2 Additional USB ports for controllers & updates
2 XLR & jack main outputs
8 XLR AUX outputs
2 Headphone outputs
RJ45 Ethernet connector
HDMI port for mixer control via a monitor
Integrated dualband WLAN & Ethernet (2 antennas, 2.4 / 5 GHz)
Compatible with iOS, Android, Windows, Mac OS, Linux (via HTML5)
Accepts up to 10 devices simultaneously (tablet, smartphone, PC)
Signal processing from dbx, Lexicon, Digitech
20 High-quality Studer designed mic preamps
Input channels with 250 ms delay, 4-band parametric EQ, gate, compressor, de-esser, HPF
2 Channels include DigiTech amp / guitar modelling
8 AUX buses with 31-band graphic EQ, AFS2 Feedback Suppression, and dbx compressor
120-Band real-time analyser (inputs and outputs)
500 ms (approx. 170 m) of delay on the output busses
4 Lexicon effects busses (reverb, delay, chorus, room)
Format: 19″ / 4 U
Depth: 16 cm
